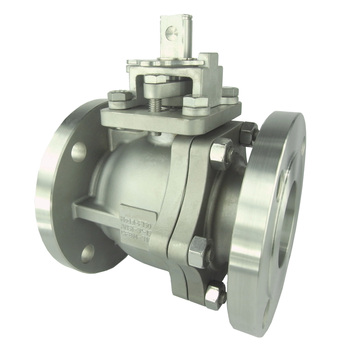

2-PC FLANGED BALL VALVE - JIS SERIES
Size 1/2" - 12"
Material SCS13A , SCS14A , SCS16A , S20C , Duplex , Alloy , Hastelloy C , etc.
Port Bore Full Bore , Reduce Bore
Rating 10K , 20K
Seat / Seal PTFE
Temp. -20 °C to 200 °C
Option Gear Operator / NACE MR0175
Seat/Seal of RPTFE , TFM , PEEK , 50/50 , Graphite , 25% Carbon
